Multistage Pumps

多級離心泵

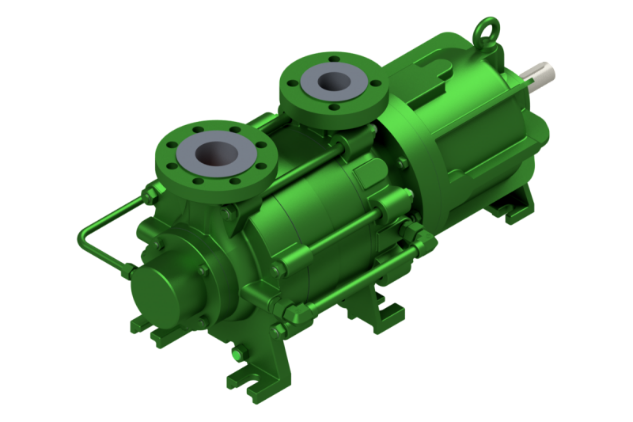

Type HZMA
single or multi-stage centrifugal pump according to ISO 15783 with magnetic coupling
▸ Q max: 600 m³/h [2640 g.p.m.]**

▸ H max: 500 m [1640 ft]**

▸ operating pressure: 16 bar [232 psi]*

▸ temperature: 200° C [392° F]*

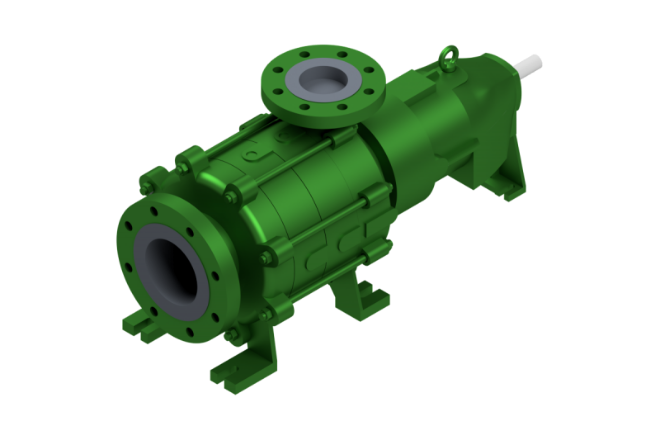

Type HZSM
self-priming, single or multi-stage centrifugal pump with magnetic coupling
▸ Q max: 600 m³/h [2640 g.p.m.]**
▸ H max: 500 m [1640 ft]**
▸ operating pressure: 16 bar [232 psi]*
▸ temperature: 100° C [212° F]*

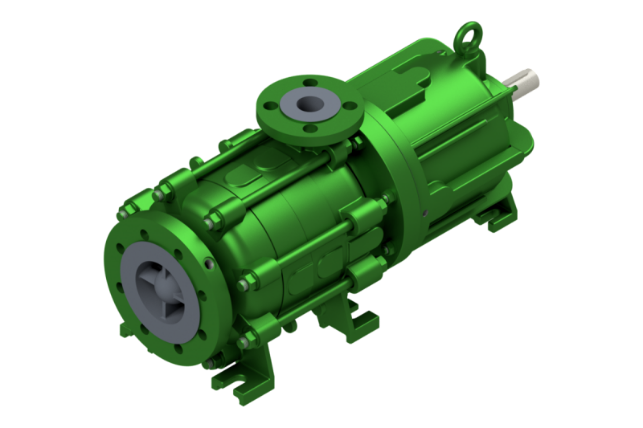

Type HZSMA
single or multi-stage centrifugal pump with magnetic coupling and priming stage
▸ Q max: 600 m³/h [2640 gpm]**
▸ H max: 500 m [1640 ft]**
▸ operating pressure: 16 bar [232 psi]/1.6 MPa]*
▸ temperature: 100 °C [210°F]*

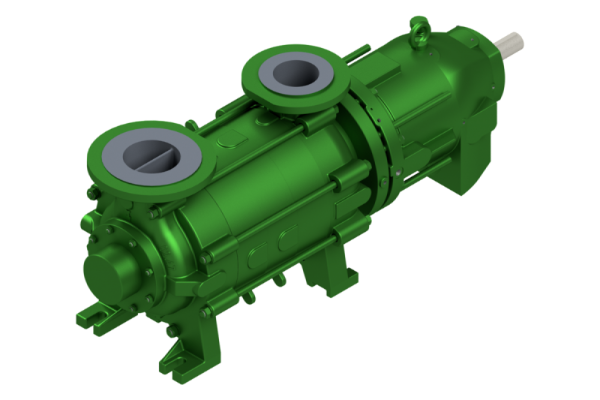

Type HZSMR
self-priming, single or multi-stage centrifugal pump with magnetic coupling

▸ Q max: 600 m³/h [2640 g.p.m.]**
▸ H max: 500 m [1640 ft]**
▸ operating pressure: 16 bar [232 psi]*
▸ temperature: 100° C [212° F]*

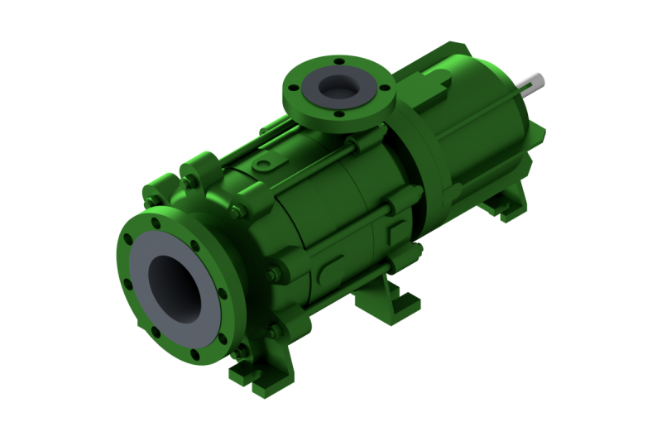

Type HZMAR
single or multi-stage centrifugal pump according to API 685 with magnetic coupling

▸ Q max: 600 m³/h [2640 g.p.m.]**
▸ H max: 500 m [1640 ft]**
▸ operating pressure: 16 bar [232 psi]*
▸ temperature: 200° C [392° F]*

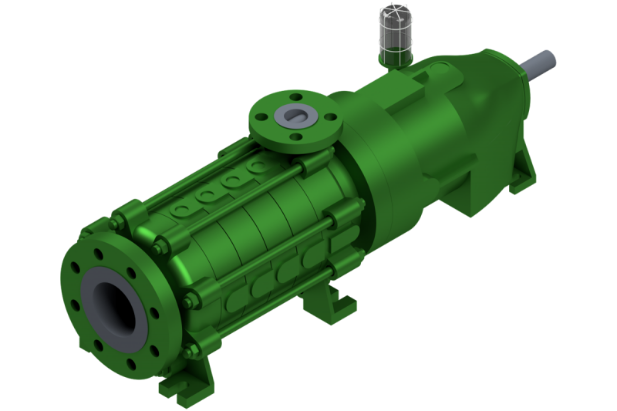

Type HZSMAR
single or multi-stage centrifugal pump according to API 685 with magnetic coupling and impeller stage

▸ Q max: 600 m³/h [2640 g.p.m.]**
▸ H max: 500 m [1640 ft]**
▸ operating pressure: 16 bar [232 ft]*
▸ temperature: 100° C [212° F]*

*higher pressures and temperatures on request

**depending on size and speed

*詳細技術規格與尺寸，請洽揚程技術人員進一步討論
